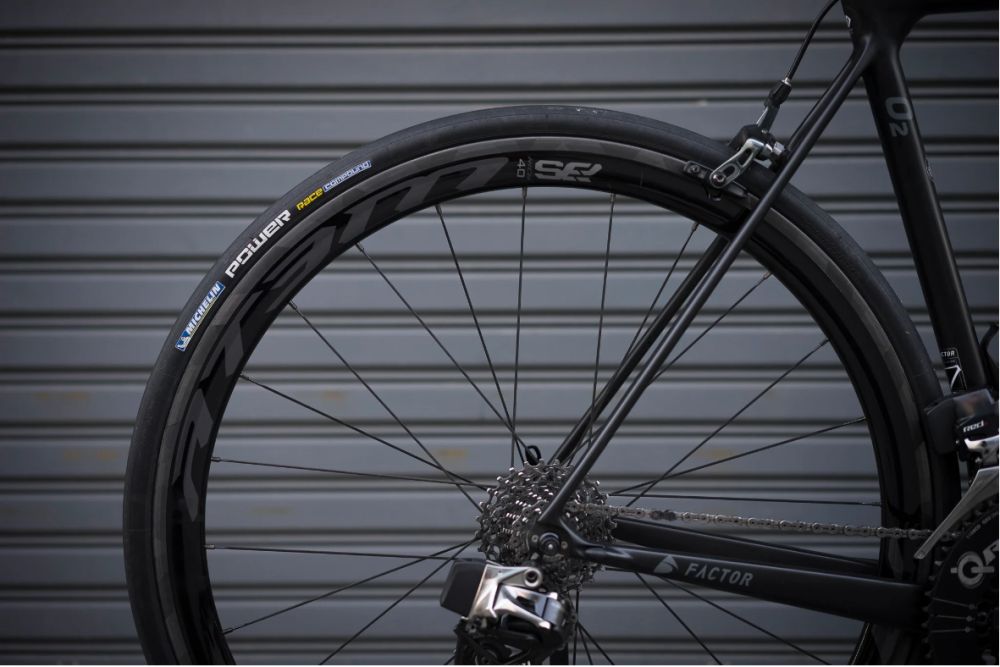

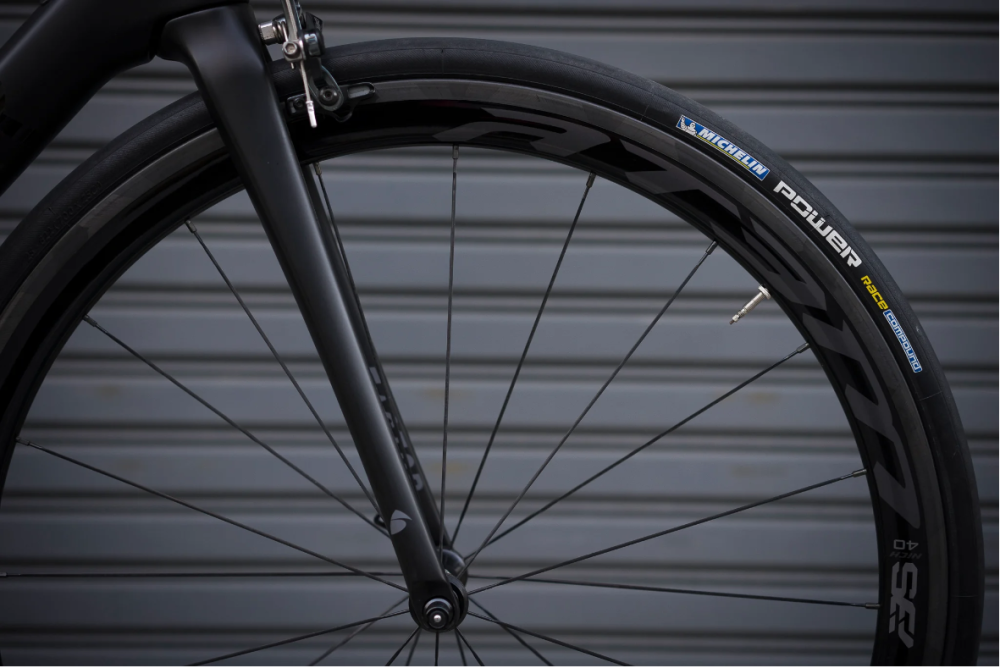

NEW ATEM3 S Wheelset 40mm
We have been developing our carbon racing wheels for more than 8 years, with the first wheels launched back in 2011. This has given us extensive knowledge and experience on what makes an outstanding rim. From humble beginnings, we now have our own mould for carbon rims, with design aid from a Ph.D. professor in Aerodynamics from Kasetsart University. Our wheels are manufactured in Taiwan by a world-class carbon wheels manufacturer.
Wide profile rim, tubeless supported
Our clincher and tubular rims are 40mm in width measured from the brakerack. Wide rims ensure good crosswind handling as the side-force is less susceptible to U-Shape rim design demonstrated in world-class competitors from Zipp, Hed, and ENVE. We have our own proprietary U-Shape design. Our clincher rims also support tubeless tires.
Quality hub, bearings, and spokes.
Our hub uses high-grade steel bearings from a Taiwan famous manufacturer. The roundness is top-notch and can be said to be stronger and rounder than low-end ceramic alternatives. We also use Sapim CX-Ray spokes to ensure good spoke strength. The wheels are built by our experienced wheel builders in our Bangkok workshop.
SPECIFICATIONS:
Rim type: Clincher / Tubeless
Rim material: Carbon
Braking surface: Carbon
Brake track height: 12mm.
Rim depth: 40mm
Rim width: 26mm external
Front spoke pattern: Radial.
Rear spoke pattern 2-cross.
Spoke count: 20 front, 24 rear.
Spoke type: Sapim Cx-ray black.
Spoke tension limited:140 kg.
Nipple type: Sapim Brass

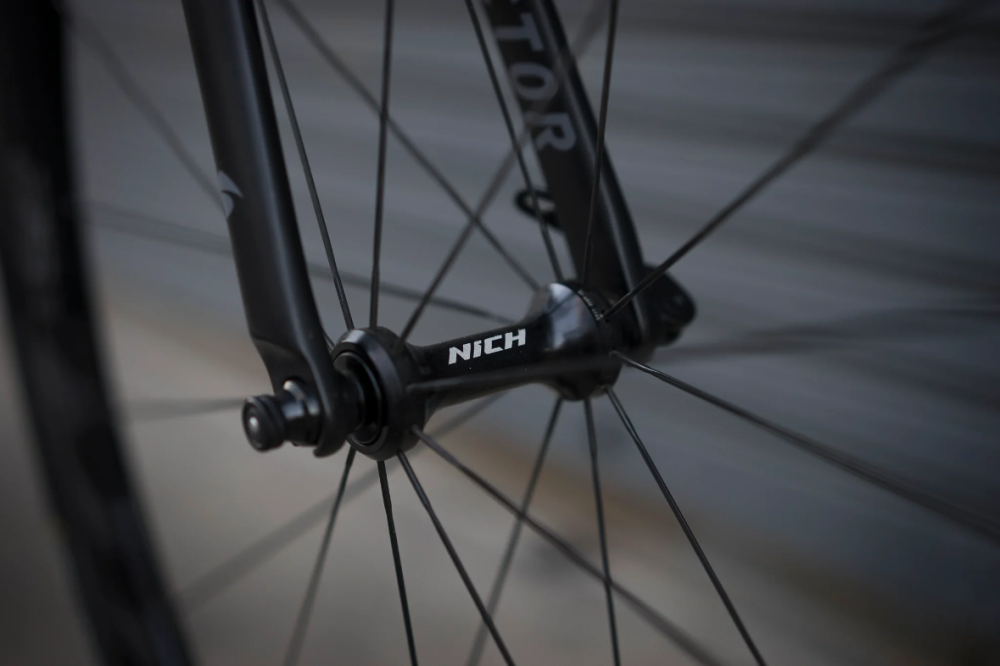

Front hub: NICH-SL alloy shell, Stainless bearings
Rear hub: NICH-SL, CNC machined alloy body, Stainless bearings, 11-speed/ Shimano, Sram XDR 12s
Recommended Tire Size: 23mm -28mm
Assembly method Hand built.
Total weight 1470 grams/pair
Rider weight is limited to 110 Kg.
Coming with Includes Alloy Skewers, Valve Extenders, Brake Pad
