Specifications

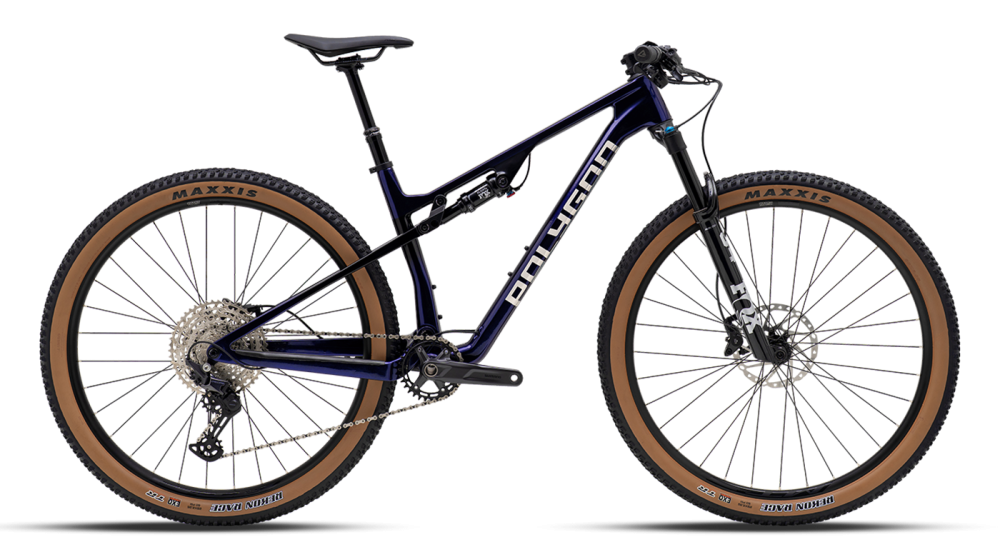

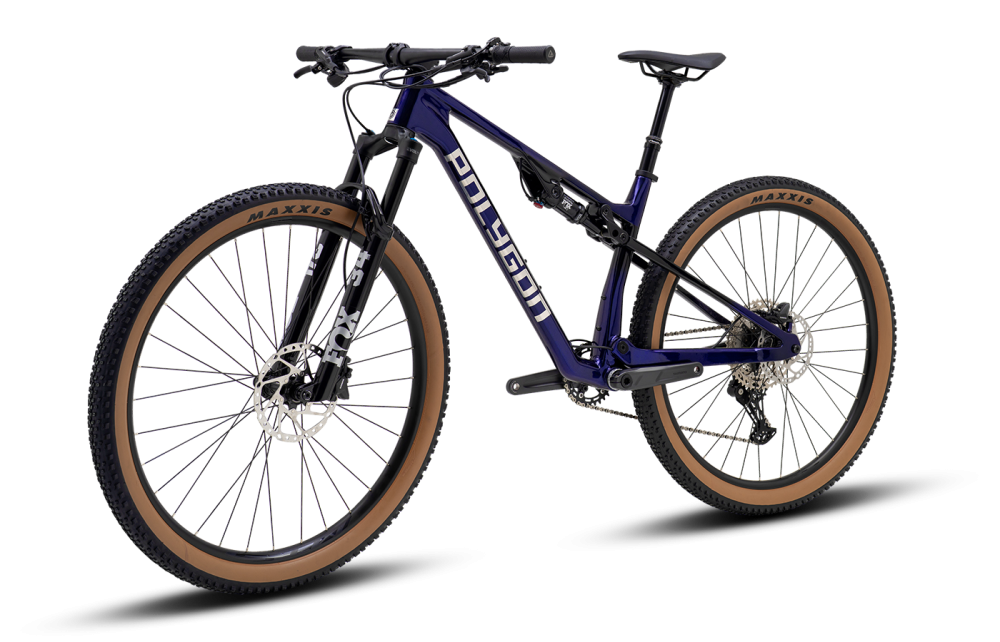

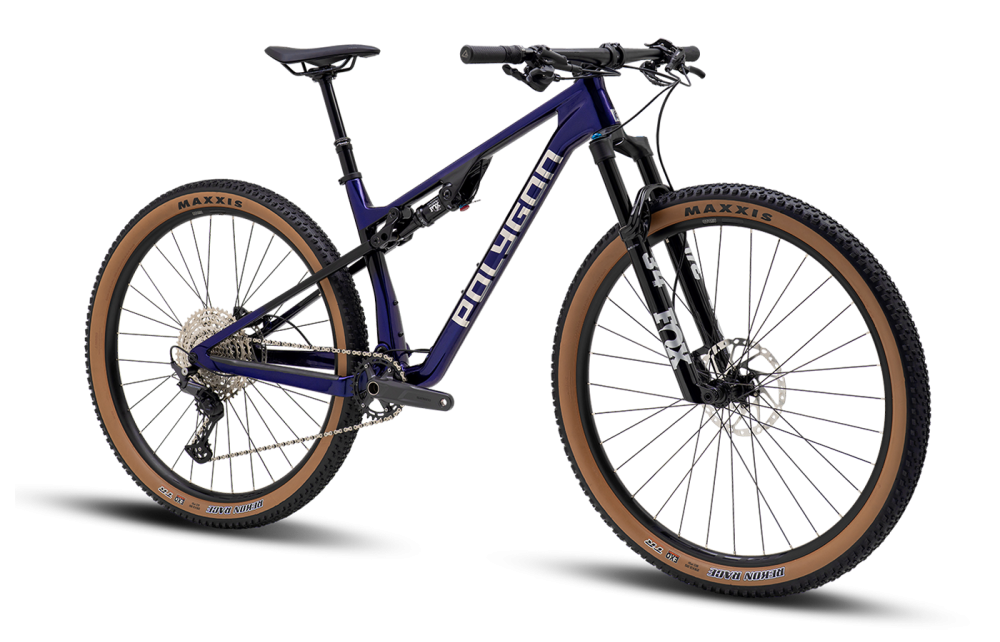

Product: Polygon Syncline DR6 Bike
Model Year: 2026
Intended Use:Cross Country Trail
Wheel Size: 29"
Frame Material: Carbon Fiber
Frame Material Details: ACX XC carbon front and rear triangles, molded chainstay protection
Rear Travel: 110mm
Rear Shock: FOX FLOAT SL Performance Elite, remote lockout, 165mm length x 40mm stroke
Fork:FOX FLOAT 34 SL Performance, remote lockout
Fork Travel:120mm
Head Tube Diameter: Straight, 52mm
Headset: FSA No.69/59/SRS/Dual, IS52/28.6 upper, IS52/40 lower
Handlebar: Polygon Expert, 760mm width, 5mm rise, 9° backsweep, 31.8mm clamp diameter
Stem: Polygon Expert, 70mm length, 17° drop, 31.8mm bar clamp
Brakes: Shimano Deore M6100, 2-piston
Rotors: Shimano RT64, CENTER LOCK, 180mm front, 160mm rear
Brake Levers: Shimano Deore M6100
Drivetrain; 1x
Shifters: Shimano Deore M6100, 12-speed
Front Derailleur: None
Rear Derailleur: Shimano Deore M6100, 12-speed
Cranks: Shimano MT512 Alloy
Chainrings:
Shimano MT512, 32 tooth
Bottom Bracket: Shimano, 73mm English/BSA threaded
Pedals: Alloy flat, replaceable pins
Chain: KMC X-12, 12-speed
Cassette: Shimano Deore M6100, 12-speed, 10-51 tooth
Rims: Polygon MT6 Alloy, double-wall, 29mm width, 32 hole, tubeless ready
Hubs: Shimano TC-500, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Spokes: Stainless steel, 14g, with brass nipples
Tires: Maxxis Rekon Race, EXO casing, TR, 29" x 2.35"
Saddle: fi'zi:k Terra Argo X7, CrMo rails
Seatpost: TranzX JD-YSP23J dropper, 125mm drop
Seatpost Diameter: 31.6mm
Seatpost Clamp: Single bolt
Rear Dropout / Hub Dimensions: 12mm x 148mm (Boost)
Bottle Cage Mounts: Two inside front triangle
Colors: Dark Metallic Blue with White decals
Warranty: 5 years frame, 2 years Entity components
Weight: 29 lb 8 oz (13380 g)
• Weight listed for size MD
