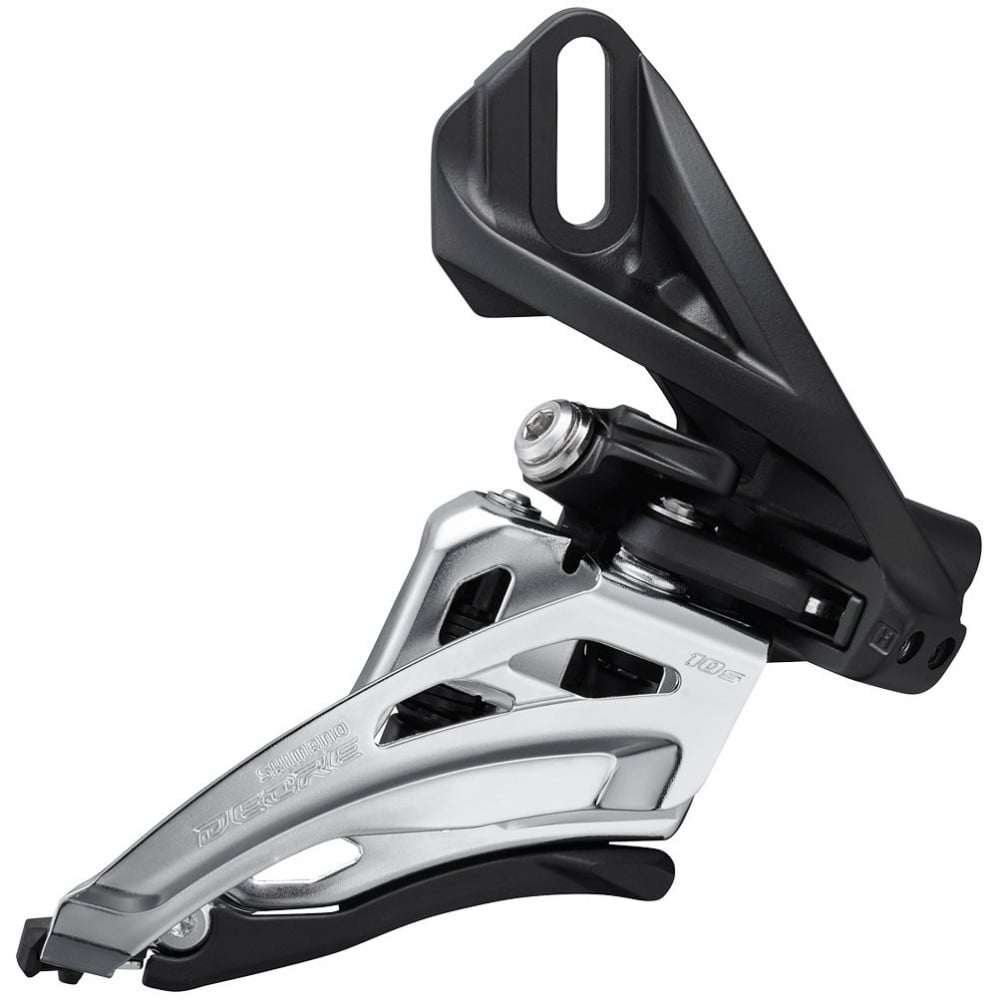

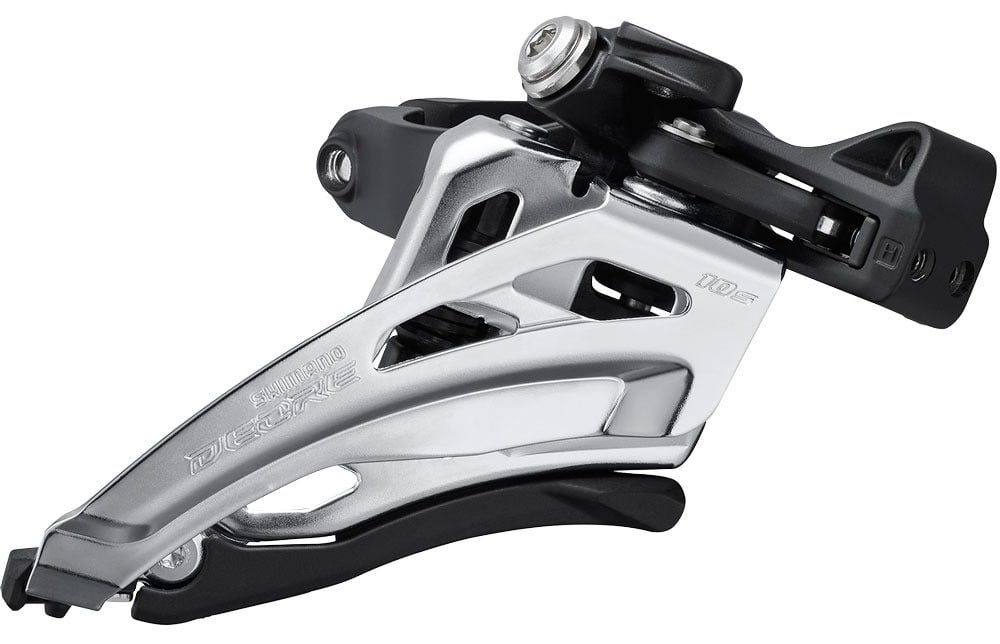

Shimano DEORE FD-M4100 10-speed Front Derailleur Side-Swing

Features - Shimano DEORE FD-M4100 2x10-speed Front Derailleur Side-Swing

• Smooth shifting by Side-Swing mechanism
• Increased tire clearance of 15mm allows for shorter chainstays
• Greater tire clearance - Compatible with 2.3-inch tire on wider rims
• Mounting options: Direct-Mount, E-Type, Clamp (choose variant)
• Adapt 48.8mm, 51.8mm chainline
• For DEORE FC-M4100-2 10-speed Crank 36/26

Product features

• Use: MTB
• Group: DEORE M4100
• Model: FD-M4100
• Cable route type: Front Pull
• Gear front: 2-speed
• Gear rear: 10-speed
• Top gear teeth: 36T
• Total capacity: 10T
• Compatible Chain: HG-X 10-speed
• Chain stay angle: 64-69°
• Chain line: 48.8mm (142mm) / 51.8mm (148mm Boost)

Mounting (choose variant)

• Direct-Mount FD-M4100-D
• E-Type FD-M4100-E (without plate)
• Clamp FD-M4100-M (Clamp 34.9mm with Adapter 28.6mm, 31.8mm)

Material

• Aluminum
• Stainless steel
• Steel
